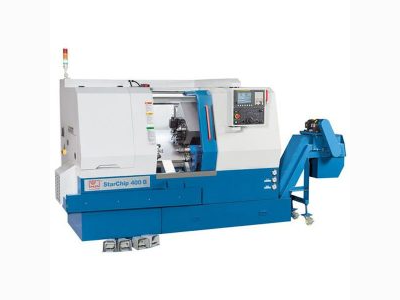

CNC LATHE / 2-AXIS / 1-SPINDLE / POWERFUL

The CNC Lathe – 2-Axis, 1-Spindle machine is a high-precision, heavy-duty turning solution designed for industrial applications that demand reliability, power, and accuracy. Built with a mono-block cast frame and inclined bed construction, this lathe provides exceptional rigidity, minimizing vibration and deflection even under the most demanding machining conditions.

Equipped with a precision turret and hydraulic 3-jaw chuck, this machine ensures high productivity and rapid machining cycles. Its 2-axis servo-driven system allows for smooth and accurate motion control, while linear guideways on all axes guarantee long-term stability, superior wear resistance, and exceptional positional accuracy.

The lathe is engineered for heavy-duty applications, capable of handling workpieces with diameters of 480 mm to 610 mm. Spindle speeds range from 50 RPM to 5,000 RPM, providing versatility for a wide range of materials and cutting operations. Powerful spindle motors supply ample torque for demanding machining tasks, while direct drive and torsion-free, large preloaded ball screws with dual-preloaded spindle nuts maintain long-term precision.

Rapid feed rates of up to 30,000 mm/min combined with the 8-station tool turret allow for efficient, bidirectional tool changes and minimal cycle times. The rigid hydraulic tailstock, positionable on wide box ways, ensures reliable support for long or heavy workpieces. Optional features such as C-axis control and 12-station VDI tool turrets for driven tools expand capabilities, enabling cost-effective complete machining of complex parts.

Additional features like automatic central lubrication, coolant systems, chain conveyors, and an electronic hand-wheel simplify setup, reduce downtime, and extend maintenance intervals. With Siemens and Fanuc control systems, this lathe represents state-of-the-art CNC technology, combining precision, power, and reliability in one machine.

Key Features

• 2-axis CNC control with high-precision servo motors

• 1-spindle with inclined bed for improved rigidity and stability

• Capable of machining workpieces up to 610 mm diameter

• Spindle speed range: 50 – 5,000 RPM

• Rapid feeds up to 30,000 mm/min for high productivity

• 8-station tool turret with bidirectional positioning (optional 12-station VDI turret)

• Hydraulic 3-jaw chuck and rigid hydraulic tailstock

• Linear guide systems on all axes for precision and durability

• Direct drive with torsion-free preloaded ball screws for long-term accuracy

• Powerful spindle motor with high torque for heavy-duty machining

• Integrated automatic lubrication, coolant system, and chain conveyors

• Electronic hand-wheel for quick setup and positioning

• State-of-the-art Siemens and Fanuc control systems
