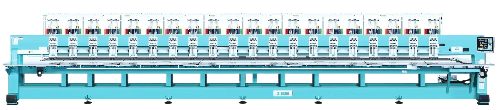

“H920” Flat Embroidery Machine
Tailored for Your Needs
The SINSIM high-speed Flat embroidery machine is specifically designed to minimize fabric fluttering, a common challenge encountered during embroidery. This innovative technology ensures exceptional stitch quality and precision, particularly when working with a variety of materials such as thick fabrics, delicate fabrics, leather and folded material.
Explore
Machine Video
“H920” Specification
4/12/15/18/20
Multi color heads
6/9/12
Needles
200-400mm
Head interval
1,100rpm
Maximum speed
1.2kw
Power consumption
30mm
Overlap of heads when using continuous pattern
Seqnin/Beads Embroidery Machine Specification
| Needle Number | 3, 4, 6, 9, 12, 15 needles for option | Head Number | 1-228 heads for option |
| Head Distance | Customized | Embroidery Area | Customized |
| Tension Base | Intelligent thread break detect | Main Shaft Motor | 2.3KW Servo Motorx 1pc |
| Upper Thread Holding Device | Automatic keep locked thread device(For Option) | Embroidery Speed: 1200 (850 and 1200 rpm optional) | 250-1200RPM |
| Auto Lubrication | For Option | X/Y Motor | 1.5KW Servo Motor x2pcs |
| Control System | Dahao Computer | X/Y Drive | 1.5KW Servo Motor x2pcs |
| Memory | 200,0000 stitches, 200pcs design | Input Voltage | Three phase 380V(50/60HZ)/Single phase 220V(50/60HZ)/ |
| Input Mode | U DISK | Power comsumption | 1.5KW-5KW |
| Design Format | Tajima (DST), DSB, BARUDAN, ZSK, binary system, Ternary system | Stitch Length | 0.1-12.7mm |
| Head Structure | Double cam double lever structure, press foot and needle bar drive independently (normal head/single cam double lever/double cam double lever optional according to needs) | Head Lock System | Solenoid jump or Motor jump |
| Machine Color | Green/Gray | Embroidery trimming | Step into the dynamic automatically cut the line design (For Option) |
| Color Change | Screw rod automatic color(For Option) | Combination Embroidery Function | Customized |
| Sequin Device | Single sequin/Double sequin/Twin sequin/4sequins | Beads device | 2mm/3mm/4mm/5mm/7mm/9mm |
| Easy Cording Device | Customized | Beads device | Customized |
